Example 1.1: Al-Mg Binary Phase Diagram
Purpose: Learn to calculate and use a binary phase diagram
Module: PanPhaseDiagram
Thermodynamic Database: Al_Demo.rtdb
Batch file: Example_#1.1.pbfx
Calculation Procedures:
- Load Al_Demo.rtdb following the procedure in Pandat User’s Guide: Load Database, and select Al and Mg two components;
- Perform section (2D) calculation following the procedure in Pandat User's Guide: Section Calculation (2D);
- Set Calculation Condition as shown in Figure 1.1.1;

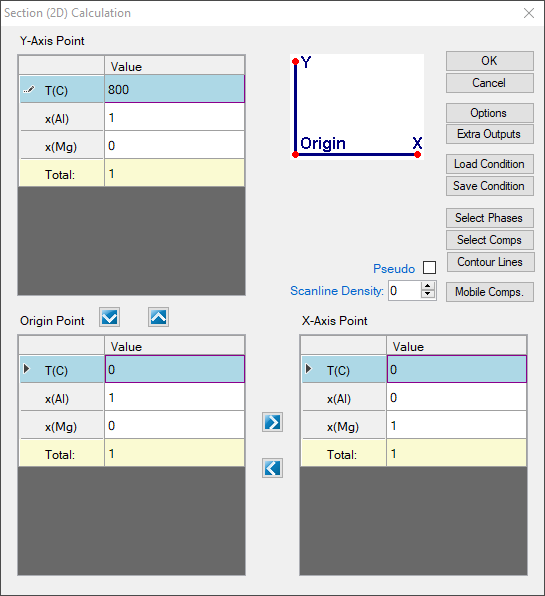

Figure 1.1.1: 2D calculation with composition from pure Al to pure Mg and temperature from 0°C to 800°C
Post Calculation Operation:
- Label phase field following the procedure in Pandat User’s Guide: Icons for Graph on Toolbar;
- Change graph appearance following the procedure in Pandat User’s Guide: Property;
- Zoom the interested area following the procedure in Pandat User’s Guide: Icons for Graph on Toolbar;
Figure 1.1.2: Calculated Al-Mg binary phase diagram
Information obtained from this calculation:
- Phase stability as a function of composition and temperature;
- Congruent melting temperature and composition of a phase. For example the congruent melting temperature of the AlMg_Gamma phase is at 463.3°C and x(Mg)=0.537;
- Invariant reaction temperatures and phase compositions. For example the three phase equilibrium: Liquid->AlMg_Gamma+Hcp is at 436.3°C, the composition, x(Mg), of each phase at equilibrium is indicated in Figure 1.1.2. Details on the invariant reactions can be found in the “invariant” table as shown in Figure 1.1.3, and composition of each phase involved in the invariant reaction can be found in the “invariant_tieline” tables as shown in Figure 1.1.4.

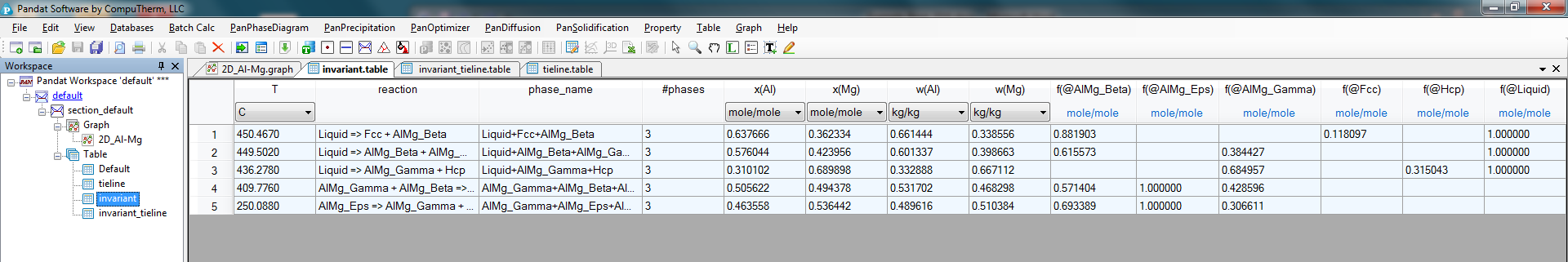

Figure 1.1.3: The invariant table showing all the three-phase equilibrium in the Al-Mg binary system

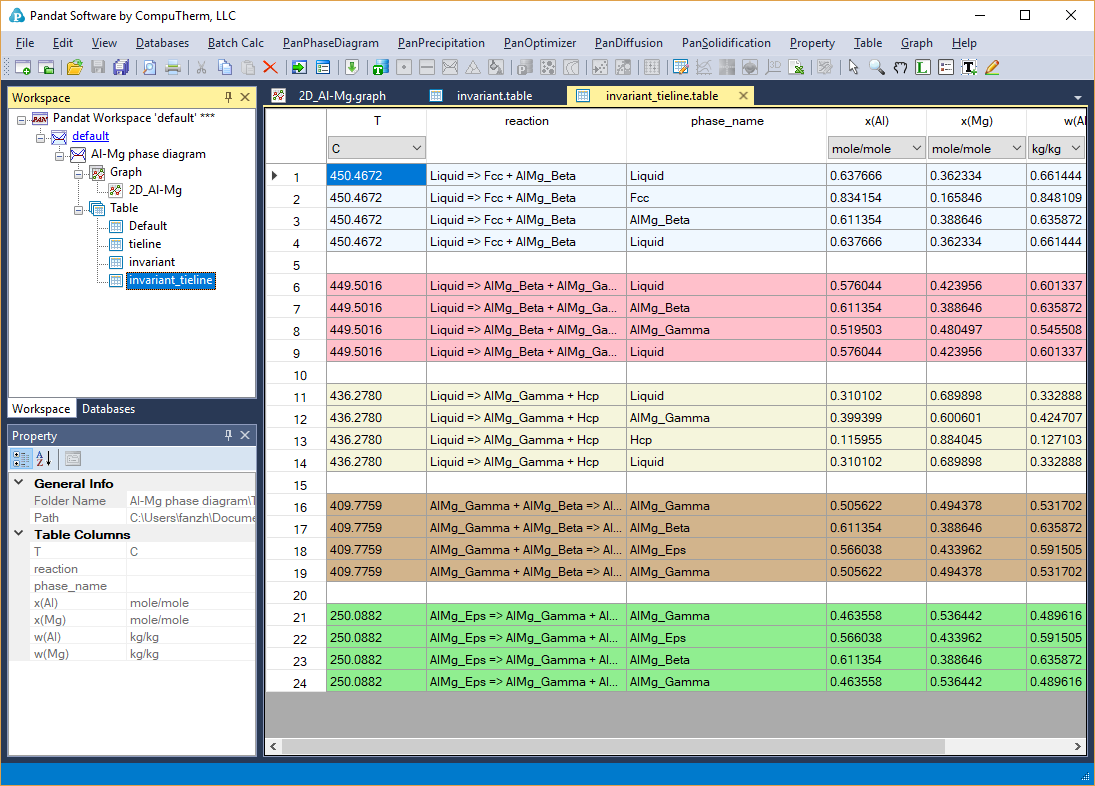

Figure 1.1.4: The invariat_tieline table showing the composition of each phase involved in the invariant reaction in the Al-Mg binary system
