PanMoltenSalt
Database for Multi-Component Chloride-based Molten Salt systems
- thermodynamic
PanMoltenSalt
PanMoltenSalt Quick Overview
-
Number of components: 14
-
Number of phases: 55
-

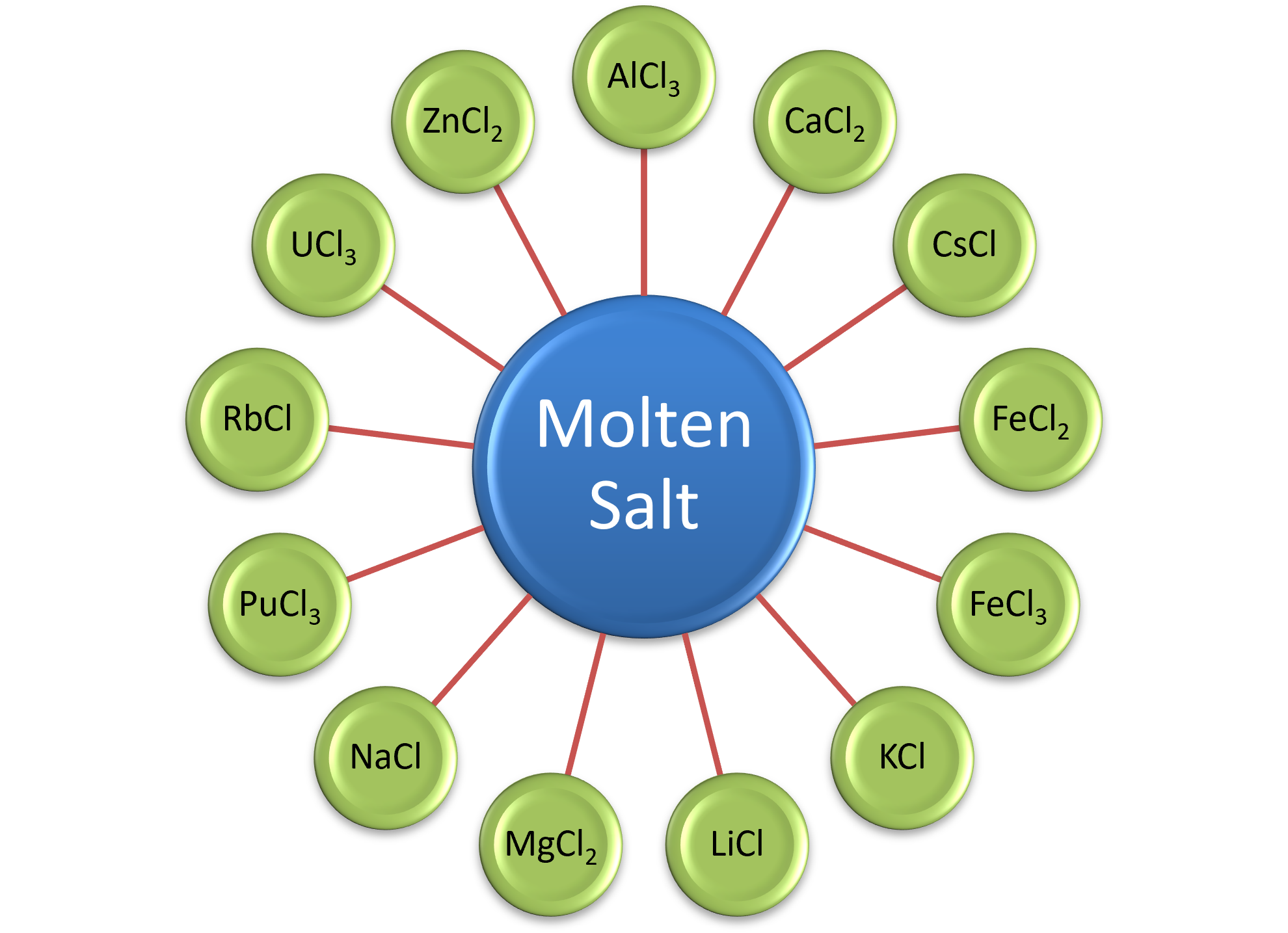

Major alloying chlorides: AlCl3, BaCl2, CaCl2, CsCl, FeCl2, FeCl3, KCl, LiCl, MgCl2, NaCl, PuCl3, RbCl, UCl3, and ZnCl2
PanMoltenSalt – newly developed thermodynamic database for multi-component Chloride-based molten salt systems applications.
- A total of 55 phases are included in the current database.
- A total of 57 binary and 4 ternary chloride systems have been critically assessed.
Applications

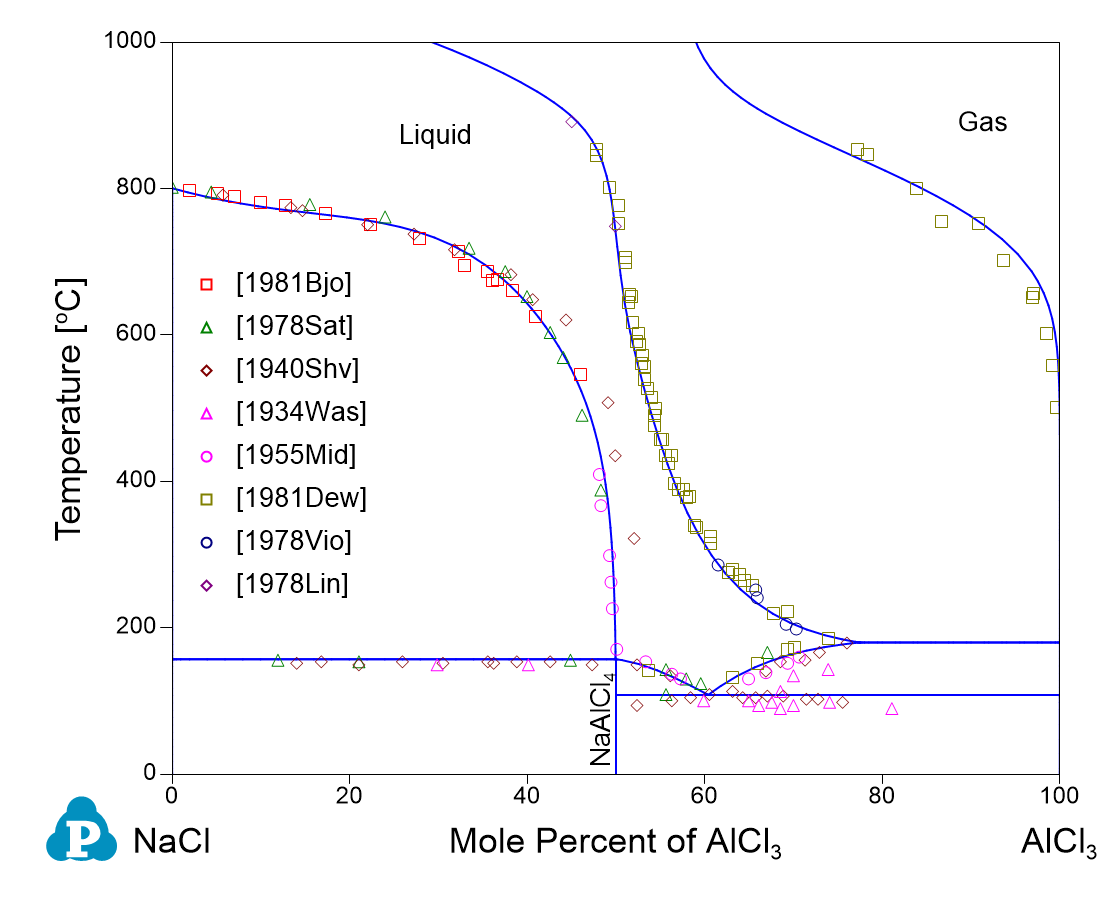

Calculated NaCl-AlCl3 binary system compared with the experimental data.
This figure shows the calculated NaCl-AlCl3 binary system in good agreement with the experimental data.

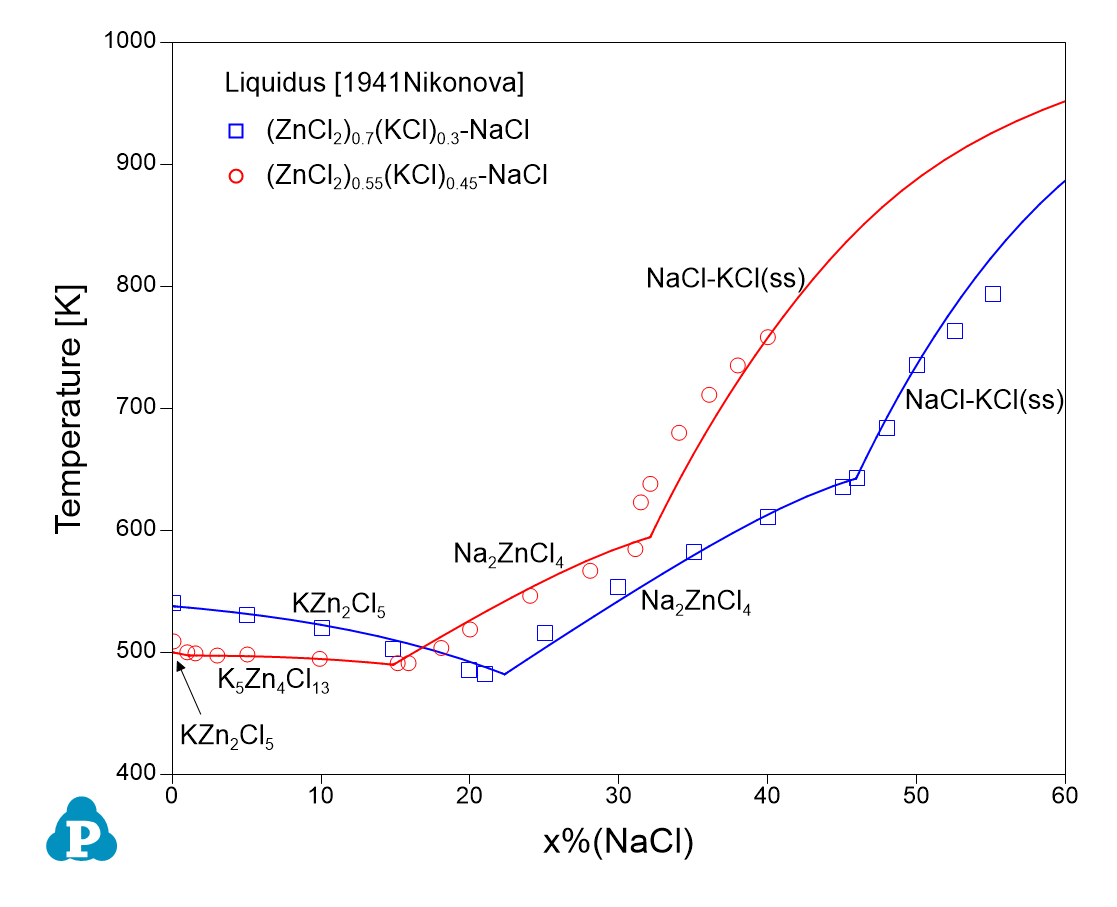

This figure shows the calculated liquidus lines through different isopleths.
Calculated Liquidus lines through ternary isopleths compared with the experimental data
